Ford Trucks 2018 Ford F650 / F750

The leader in commercial trucks for 28 years.

For 28 years,* Ford has been the number-one supplier of commercial trucks in the U.S. That’s not surprising. With a powerful and dependable lineup of engines and transmissions, including a gas engine and a 6-speed transmission, America counts on F-650 and F-750 trucks to get the job done from sunup to sundown.
*Based on R.L. Polk & Co., 1985-2011 U.S. Class 2-8 new registrations excluding SUVs.

Standard Features
  • 10-gal. DEF tank (diesel)
  • 12-volt Delco Remy 38 MT Type 300 starting motor (diesel)
  • 12-volt starting motor (gas)
  • Fuel tank – 42-gal. single rectangular steel, shallow (13" deep), frame-mounted on left side (Regular Cab/SuperCab gas)
  • Fuel tank – 45-gal. single rectangular steel, shallow (13" deep), frame-mounted on left side (diesel)
  • Fuel tank – 60-gal. single rectangular steel, shallow (13" deep), frame-mounted on left side (Crew Cab gas)
  • Ford TorqShift® 6-speed automatic transmission (without PTO provision; gas)
  • Alternator – 177-amp, 12-volt, Denso (gas)
  • Alternator – 185-amp, 12-volt, Leece-Neville, pad-mounted (diesel)
  • Batteries – 625 Cold Cranking Amps (CCA), 12-volt (2 for a total of 1,250 CCA; diesel)
  • Battery – 900 Cold Cranking Amps (CCA), 12-volt (gas)
  • Battery box at right-hand frame rail under cab step
  • BorgWarner fan clutch (diesel)
  • Bosch DDSA-type parking brake, 12" x 3," rear axle-mounted
  • Brakes – Meritor® Quadraulic™ split-system, full-power, 4-channel
  • Anti-Lock Brake System (ABS)
  • Donaldson® single element air cleaner with restriction indicator (diesel; late availability)
  • Driveshaft – Spicer SPL100
  • Emergency flashers
  • Engine coolant with red, extended-life Organic Acid Technology (OAT) -40°F freeze-protection rating
  • Exhaust – In-line single, horizontal, diesel particulate filter assembly; frame-mounted right side back of cab, single horizontal SCR assembly; frame-mounted right side back of cab, horizontal tailpipe; exits behind rear wheels, right side (diesel)
  • Exhaust – In-line single, horizontal, muffler, catalytic converter, framemounted right side back of cab; downward-facing outlet tip (gas)
  • Fleetguard® fuel/water separator with electric-type heater and primerpump (diesel)
  • Frame-mounted body-builder wiring at back of cab
  • Front double-acting shock absorbers
  • Fuses – SAE blade-type
  • Parking brake control lever, right of driver
  • Radiator – 717 sq.-in., cross-flow, aluminum with in-tank transmission fluid cooler (diesel)
  • Radiator – 857 sq.-in. aluminum with in-tank transmission fluid cooler (gas)
  • Rectangular halogen sealed-beam headlamps (includes front-side marker lamps with reflectors)
  • STEMCO® wheel seals (front and rear axle), oil lubricated wheel bearings (front and rear)
  • Taillamps (2) with integrated stop, turn signal, backup and license plate
  • Vari-rate suspension with multi-leaf rear springs
  • Viscous fan clutch (gas)

Interior & Exterior Features

  • Air conditioning – Manual with integral heater and defroster
  • Air registers with positive shut-off
  • Assist handle on interior A pillars
  • Coat hooks (2)
  • Cruise control with steering wheel-mounted controls
  • Cupholders on 70% front passenger seat fold-down armrest
  • Floor covering – Black vinyl

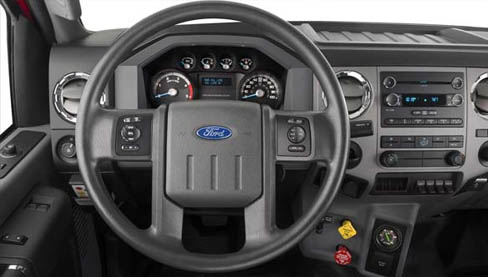

  • Gauge cluster with electronic speedometer (mph/kph), oil pressure, coolant temperature, DPF gauge (diesel only), transmission temperature (gas only), fuel gauge, tachometer, indicator lights, enhanced 3-button message center with odometer, trip odometer, distance to empty for fuel, average fuel economy and warning messages
  • Left-/right-hand front-window demisters
  • Multifunction, self-canceling turn signal switch
  • Powerpoints – 12-volt (2)
  • Rear-mounted dome lamp with integral map lights (Regular Cab/Crew Cab only)
  • Scuff plates – Black molded-in-color
  • Steering wheel – Black vinyl 2-spoke (15.5" diameter with 8,500-lb. front axle; 17.5" diameter with 10,000-lb. front axle)
  • Tilt steering column
  • Upfitter switches (4) located in center IP with connector access located in engine compartment; 10-amps per switch (XL/XLT diesel, XLT gas)
  • Cab Equipment
  • Assist handle on exterior B pillars (Regular Cab)
  • Assist handle on exterior rear doors (SuperCab)
  • Assist handle on exterior C pillars (Crew Cab)
  • Bumper – Front; full-width, chrome-plated steel
  • Dual electric horn
  • Grille – Chrome (includes chrome headlamp bezels)
  • Hood – Frame-mounted front-end-tilting fiberglass hood and fenders assembly with torsion-bar assist (includes integrated noise shield, inner splash shields and mud flaps)
  • Lamps – Roof marker/clearance (5)
  • Mirrors – Auxiliary convex (2), stainless steel, 8" diameter, mounted below primary mirrors (XLT diesel only; available only with dual stainless steel West Coast-style mirrors)
  • Mirrors – Dual rectangular, 7.5" x 16.5" stainless steel, West Coast-style, 102"-wide spacing (diesel)
  • Mirrors – Dual rectangular, manually adjustable with integrated blind spot mirrors, sail-type, 96"-wide spacing (gas)
  • Window – Fixed rear, solar-tinted
  • Windshield – Laminated glass, solar-tinted
  • Windshield wipers – 2-speed intermittent with washer

Safety & Security

  • Belt-Minder® safety belt reminder (chime and flashing warning light on instrument panel if driver’s safety belt isn’t buckled)
  • Safety belts – Color-keyed with fixed D-rings at all positions (Regular Cab)2
  • Safety belts – Color-keyed with front-seat adjustable D-rings (SuperCab/Crew Cab)2

1 When properly equipped. 2Always wear your safety belt.



Ford F650 / F750
Ford F650 / F750
Ford F650 / F750
Ford F650 / F750
Ford F650 / F750
Available Trim Levels / Models

F-650 Pro Loader

  • Maximum Capabilities
  • Ford Turbo Diesel
  • GVWR: 26,000 lbs.
  • 6.8L Triton® V10 3-valve gas
  • GVWR: 26,000 lbs.

    Equipment Configurations
  • Front axle: 8,500 lbs. Meritor®
  • MFS-08-153B I-Beam (standard)
  • Rear axle: 13,500 lbs. Meritor MS-17-14X-3DLF single-speed (standard)
  • Driveline: 4x2 dual rear wheel only
  • Bodies: Regular Cab, SuperCab, Crew Cab
  • Trim Series: XL

F-650

  • Maximum Capabilities
  • Ford 6.7L Turbo Diesel
  • GVWR: 29,000 lbs.
  • 6.8L Triton V10 3-valve gas
  • GVWR: 30,000 lbs.

    Equipment Configurations
  • Front axle: 8,500 lbs. Meritor
  • MFS-08-153B I-Beam (standard)
  • Rear axle: 17,500 lbs. Dana Spicer® S17-140 single-speed (standard)
  • Driveline: 4x2 dual rear wheel only
  • Bodies: Regular Cab, SuperCab, Crew Cab
  • Trim Series: XL

F-750

  • Maximum Capabilities
  • Ford 6.7L Turbo Diesel
  • GVWR: 37,000 lbs.

    Equipment Configurations
  • Front axle: 10,000 lbs. Meritor
  • MFS-10-122A I-Beam (standard)
  • Rear axle: 21,000 lbs. Meritor MS-21-14X-3DLF single-speed(standard)
  • Driveline: 4x2 dual rear wheel only
  • Bodies: Regular Cab, SuperCab, Crew Cab
  • Trim Series: XL
